  1. Nikon Eclipse E600 with U-III Film Camera System Available since the mid-1990s, the mid-tier microscope incorporates completely new specifications adopted for the CFI 60 series objectives, including a 60-millimeter parfocal distance, a 25-millimeter thread size, and a.
  2. Nikon camera for image capture; Specifications: 5x, 10x, 50x objectives; 10x eyepiece.
Model:Eclipse ME600Nikon eclipse me600 manual pdf

View and Download Nikon Eclipse E600 instructions manual online. Eclipse E600 microscope pdf manual download.

Category:MICROSCOPES
CAE has broad access to semiconductor related equipment direct from fabs, often unavailable through other sources. CAE finds the best deals on used NIKON Eclipse ME600. CAE has 7 microscopes currently available. We’re accountable for every transaction — CAE will seek to collect as much information as you require to ensure that you receive the equipment in the condition that you are expecting. Send us your request to buy a used microscope NIKON Eclipse ME600 and we will contact you with matches available for sale.

Safety

Nikon Eclipse Me600 Microscope Manual

Our market reach and industry experience enable us to provide an accurate and complete view of the quality of every item. And if something goes wrong at any stage of a transaction, we find a resolution.

Eclipse

Comprehensive

We provide unmatched access to assets across the globe.

Effective

Utilizing our platform and team experience, we match your needs to available assets quickly and at the best possible price.

Support

Our dedicated settlement team supports import/export compliance, de-installation, rigging, crating, storage, and shipping on a global basis.

Nikon Eclipse Me600 Manual Pdf

Eclipse E600

Nikon Eclipse Me600 Manual Troubleshooting

( Circa early 1990s )

Nikon Eclipse Me600 Manual

Nikon's Eclipse E600 research microscope is equipped with the revolutionary CFI60 infinity optical system, providing bright, sharp, crisp and clear images in all applications.

Available since the mid-1990s, the mid-tier microscope incorporates completely new specifications adopted for the CFI60 series objectives, including a 60-millimeter parfocal distance, a 25-millimeter thread size, and a standard 22-millimeter field of view. An ergonomic design allows for longer periods of comfortable observation.

Nikon Eclipse Me600 Manual Download

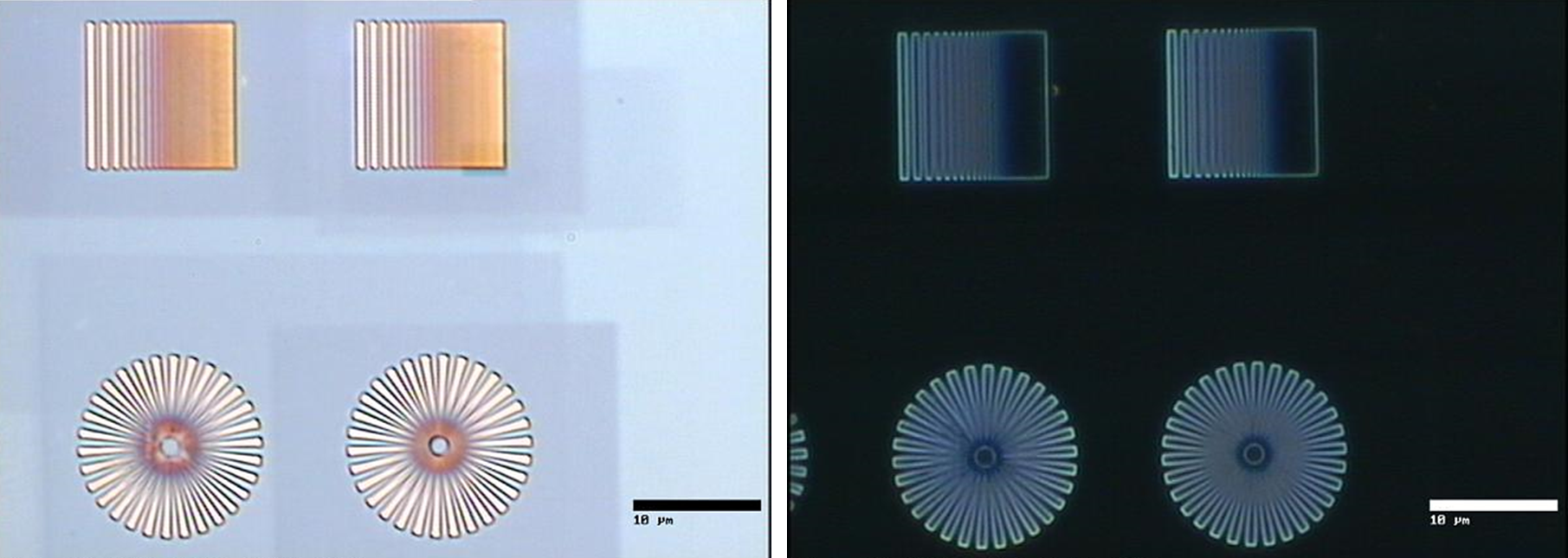

The E600 is equipped with a detachable substage, a 12-volt 100-watt tungsten-halide lamp, filter magazine, and a choice of sextuple nosepiece or sextuple DIC nosepiece. The microscope features a longer focal length tube lens, a characteristic feature of the new CFI60 infinity optical system, and a new multiple point rigid design for attaching accessories. Advanced universal objectives allow for multiple observation techniques -- such as brightfield, darkfield, Nomarski DIC, epi-fluorescence or phase contrast -- eliminating the need to change objectives while maintaining the same optical quality as dedicated lenses.

Main components of the CFI60 infinity optical system include the objective, a tube lens to converge the light beam, and an eyepiece lens to enlarge the intermediate image, all with the absence of significant optical aberration. A parallel optical path exists between the objective and the tube lens, which allows auxiliary modules, such as an epi-fluorescence illuminator or polarizing intermediate tube to be placed in the optical path in order to create a flexible modern microscope system without additional relay optics.

Nikon Eclipse Me600 Microscope

Infinity or parallel light beams offer an intrinsic design advantage in that they are relatively insensitive to placement of additional optical components in the telescopic space between the objective and the tube lens. So long as they are plane parallel, infinity beams are not affected by the thickness of components, such as filters, analyzers, compensators, DIC prisms, and reflectors. The location of the image point remains constant, both axially and laterally, as does the alignment between the objective and the tube lens.

Nikon Eclipse Me600 Manual Transmission

The E600 incorporates a number of ergonomic features. The angle of the eyepiece tube is lower than on conventional models, only 25 degrees up from horizontal, assuring better posture for the operator. An optional riser allows taller operators to increase the height of the eyepiece by as much as 100 millimeters. The stage height is 200 millimeters lower than on conventional models, facilitating smooth nosepiece rotation and specimen handling for faster, more efficient, strain-free operation. The stage handle and the focus control knob are equidistant from the operator and positioned so the operator's hands can rest on the desk. The main switches and controls are located in the front for easy access. The design of the fine focus knob and the stage handle enable the user to make adjustments with one hand leaving the second hand free for other tasks.

Today the Eclipse E600 is succeeded by the Eclipse Ni-U and Eclipse Ci Series upright microscopes.
